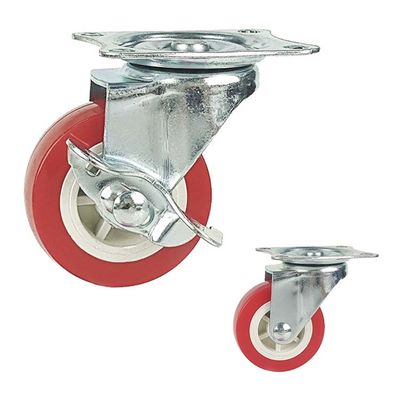

ISO9001 PU 2 Inch Swivel Caster Wheels With Side Brake
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 2 Inch 44lbs Swivel Plate Red Pu Core Pp Light Duty Casters With Side Brake | Style | Light Duty Pu Casters |
|---|---|---|---|
| Wheel Size | 40x16.3mm | Wheel Material | Polyurethane/PU |
| Color Of Wheel | Red+Gray | Bearing Type | No Bearing |
| Highlight | PU 2 inch swivel caster wheels,ISO9001 2 inch swivel caster wheels,PU stem caster wheels |
||
Product Description

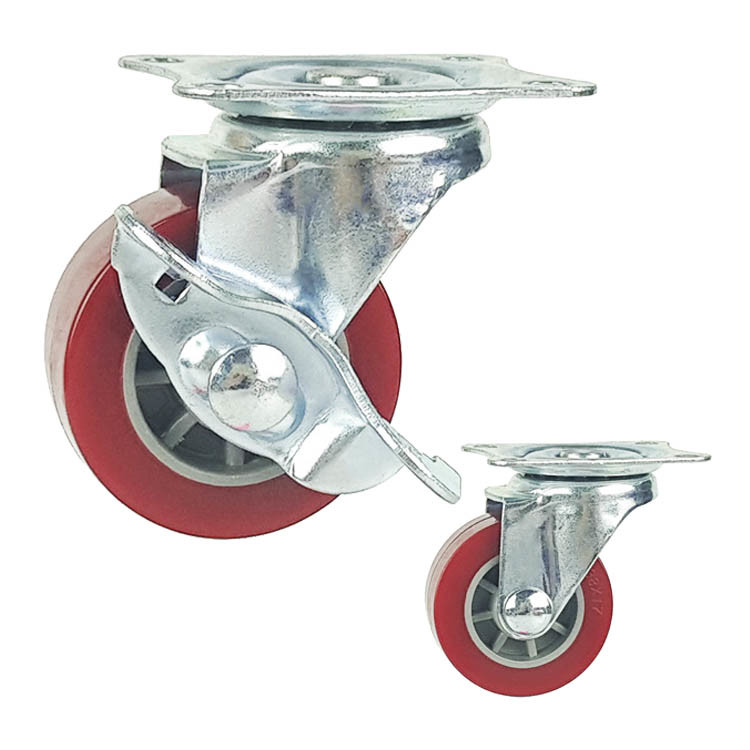

2 inch 44lbs swivel plate red pu core pp light duty casters with side brake
Description:
Zinc plated bracket 1.5 inch plate swivel red pu light duty caster wheel.

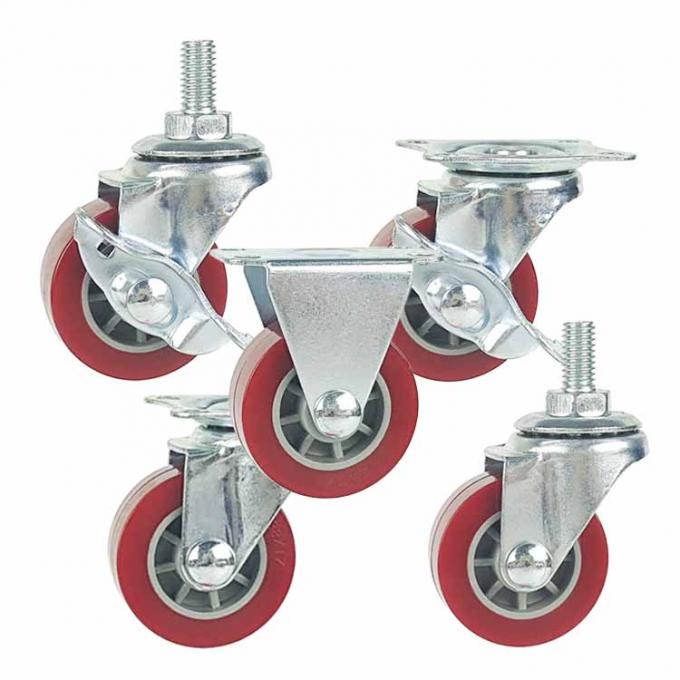

Mounting type includes top plate, bolt hole, threaded stem, stem and grip ring stem is also fine.
Wheel diameter rage from 25mm to 75mm.
Loaded capacity from 10 kg to 50 kg.
Made of PU, PP and steel.
No bearing caster wheel.
Apply to many applications.
Product Specifications:
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PUP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030PUP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 | |
| I001C040PUP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 | |
| I001C050PUP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 | |
| I001C065PUP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 | |
| I001C075PUP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PUPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030PUPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 | |
| I001C040PUPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 | |
| I001C050PUPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 | |
| I001C065PUPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 | |
| I001C075PUPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |

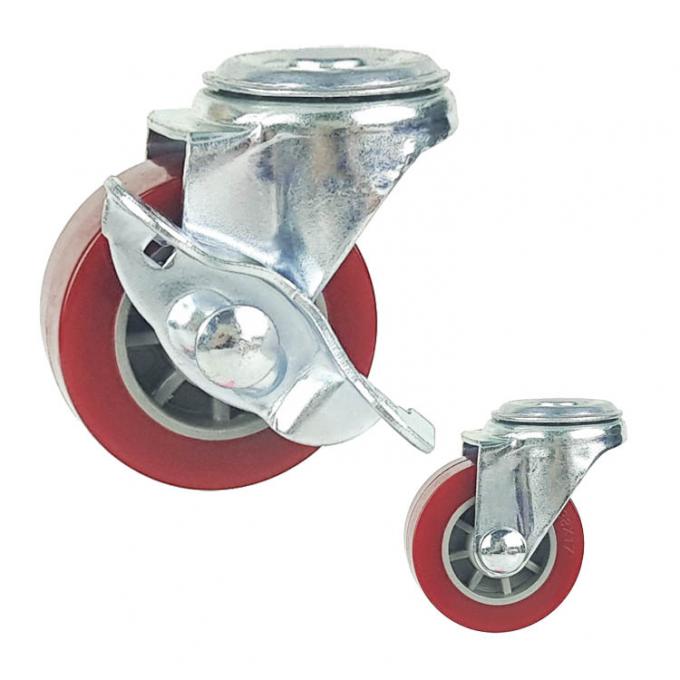

Bolt Hole Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C050PUD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065PUD | 65x25 | 84 | 8 | 40 | |
| I001C075PPD | 75x25 | 93 | 10 | 50 |

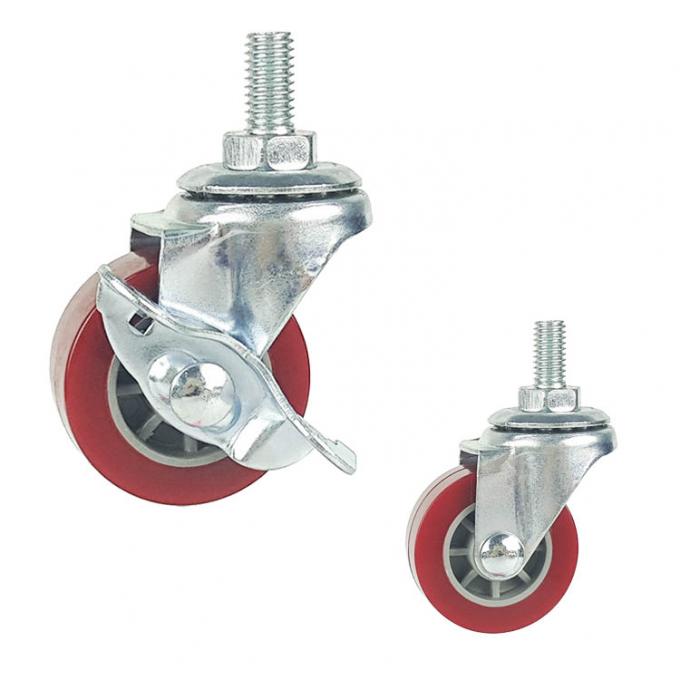

Threaded Stem Type
| odel Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Threaded Stem Size MM |
Bearing Type | Loaded Capacity KG |
| I001C040PUT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050PUT | 50x20.3 | 65 | 8x15 | 30 | |
| I001C065PUT | 65x25 | 84 | 10x25 | 40 | |
| I001C075PUT | 75x25 | 93 | 10x25 | 50 |
About Us:
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1997.
Q: Where is your factory? Can I visit ?
A: Our factory is located in Yangjiang, Guangdong. 2 hours by car from Guangzhou,You are absolutely welcome to visit.
Q: What is your delivery time?
A: Normally within 20 days. It also depends on the order quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes, samples are available at any time, negotiable.
Q: Can i customize my own brand? If i want to make a new type of caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing box, aslo can punching logo on the caster bracket, even produce your new model of caster with our great professional experience. We are good at doing the OEM things.
